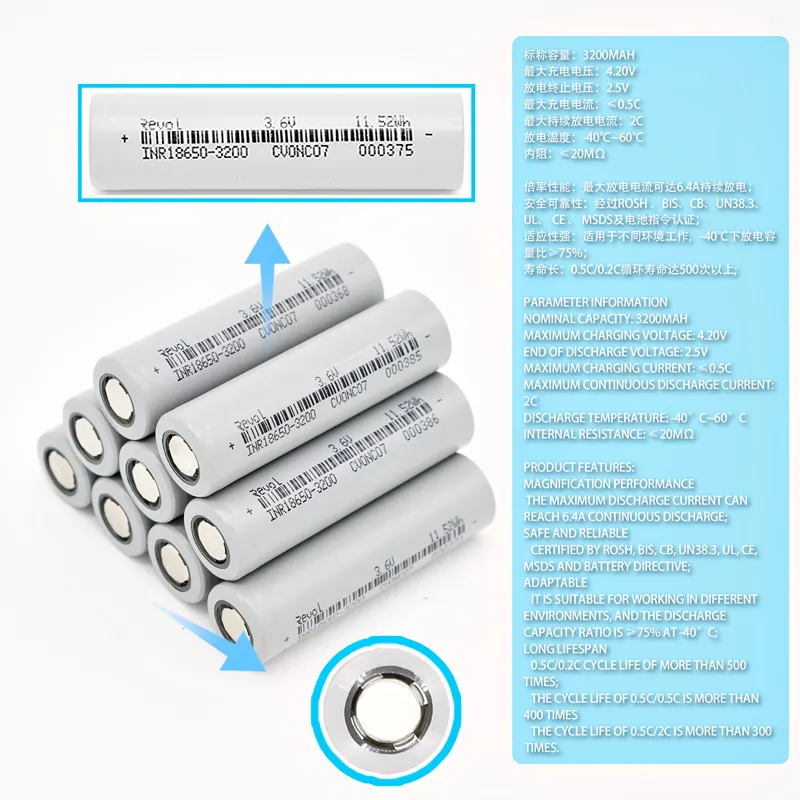

Parameter information
Nominal capacity: 3200mAh
Maximum charging voltage: 4.20V
Discharge cut-off voltage: 2.5V
Maximum charging current: ≤0.5C
Maximum continuous discharge current: 2C
Discharge temperature: -40℃~60℃
Internal resistance: ≤20mΩ
Product Features
| Item | Specification |
| Rate performance | the maximum discharge current can reach 6.4A continuous discharge. |
| Safety and reliability | certified by RoHS, BIS, CB, UN38.3, UL, CE, MSDS and battery directive certification. |
| Strong adaptability | suitable for working in different environments, discharge capacity ratio ≥75% at -40°C. |
| Long cycle life | 0.5C/0.2C cycle life reaches more than 500 times. |
High energy density: INR18650-3200HL has a high capacity of 3200mAh while maintaining a small size and weight, which is very suitable for applications with limited space.
Excellent cycle performance: After optimized design, this battery can still maintain a high capacity retention rate after multiple charge and discharge cycles, extending the battery life.
Low internal resistance: The low internal resistance design ensures efficiency and stability at high power output, reduces heat generation and improves safety.
Wide temperature range: It can work normally in the temperature range of -20°C to 60°C, adapting to various extreme environmental conditions.
Intelligent protection circuit: Built-in multiple protection mechanisms such as overcharge protection, over-discharge protection, short circuit protection and temperature protection ensure the safe use of the battery.
High cost performance: Compared with other similar products, INR18650-3200HL has achieved a good balance between performance and price, suitable for large-scale applications.
Fast charging: Supports fast charging technology, which can be fully charged in a short time, improving the user's convenience.
Environmentally friendly: Made of environmentally friendly materials, in line with international environmental standards, easy to recycle, reducing the impact on the environment.
Whether an OEM/ODM Solution is required?
Our company has designed and developed battery cells and battery module products, covering multiple fields such as power, electric tools, digital appliances, energy storage, etc., with multiple advantages such as high safety and reliability, high energy density, long cycle life, and high cost-effectiveness.
