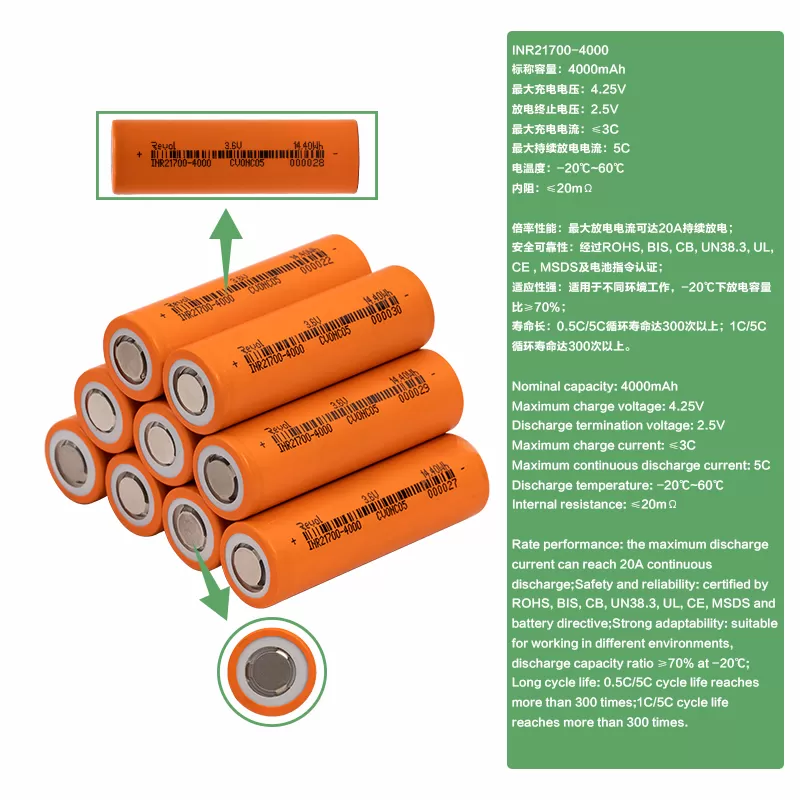

Parameter information
Nominal capacity: 4000mAh
Maximum charge voltage: 4.20V
Discharge termination voltage: 2.5V
Maximum charge current: ≤2C
Maximum continuous discharge current: 5C
Discharge temperature: -20℃~75℃
Internal resistance: ≤15mΩ
Product Features
| Item | Specification |
| Rate performance | The maximum discharge current can reach 20A contiguous discharge |
| Safety and reliability | Certificate by RoSH, BIS, CB, UN38.3, UL, CE, MSDS and battery directive |
| Strong adaptability | Suitable for working in different environments, discharge capacity ratio ≥80% at -10℃ |
| Long cycle life | 4A/15A cycle life reaches more than 250 times |
Electric Vehicles (EVs): such as electric cars, electric bicycles, electric scooters, etc., provide strong power support and longer driving range.
Portable Electronics: such as laptops, smart wearable devices, mobile power supplies, etc., ensure long-term use without frequent charging.
Energy Storage Systems (ESS): used for home or industrial energy storage to improve energy efficiency and reliability.
Power Tools: such as electric drills, lawn mowers, vacuum cleaners, etc., provide efficient and long-lasting power output.
Medical Devices: such as portable medical monitoring equipment, ventilators, etc., ensure stable operation and safety of equipment.
Capacity:
Energy density: High energy density means more energy can be stored in the same volume, providing longer battery life.
Cycle life: After more than 1,000 charge and discharge cycles, it can still maintain a high capacity retention rate, ensuring stable performance in long-term use.
Safety:
Built-in protection circuit: Including overcharge protection, over-discharge protection, short circuit protection and temperature protection, effectively preventing safety problems caused by improper use of the battery.
Material selection: High-quality positive and negative electrode materials and electrolytes are used to reduce the risk of internal short circuits and thermal runaway.
Strict quality control: International standards are strictly implemented during the production process, and multiple safety certifications (such as PSE, CB, BIS, CE, TUV, IEC 62133-2, RoHS 2.0, UL2580, etc.) are passed to ensure the safety and reliability of the product.
Temperature management: Good thermal management design ensures that the battery can work normally under extreme temperature conditions and extend its service life.
Related Products
Whether an OEM/ODM Solution is required?
Our company has designed and developed battery cells and battery module products, covering multiple fields such as power, electric tools, digital appliances, energy storage, etc., with multiple advantages such as high safety and reliability, high energy density, long cycle life, and high cost-effectiveness.
